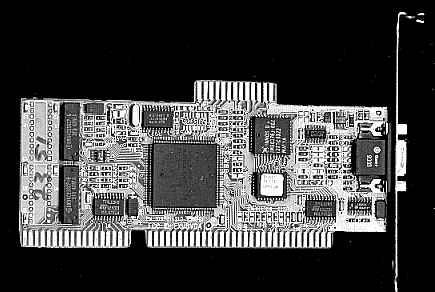

A VGA [] video card

This is a 16 bit VGA card, with 512K of memory on board (two 256 chips). It runs at 2300 characters per second.

[]  []

At the end connector:

If used as a VGA card, the screen size will be limited to 800x600 at 256 colors. The connector at the top is a "feature" addition. There are no jumpers to set.

The card connector indicates that this is a 16 bit ISA card.


[]
