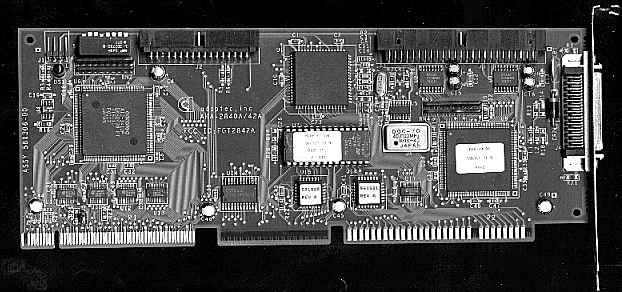

This is a 32 bit VLB SCCI controller card with both internal and external connections, and a FD Controller.

Along the top, left to right...

• A 4-pin LED connection
• A set of 8 switches to set the address, etc (there is a list of settings on the back of the card), as follows..
  • Switches 1 through 4 -- sets the SCCI port address
  • Switch 5 -- Enables or Disables the Floppy Drive Connection
  • Switches 6 through 7 -- set the BIOS address (C8000 - E0000)
  • Switch 8 -- Enables or Disables the BIOS
• A 34 pin connector for a floppy drive
• A 50 pin connector for additional internal SCCI devices

The end connection shows a 50 mini DB50 connector with locks.

The card connector at the bottom indicates that this is a 32 bit VLB bus card (The ISA bus plus the VLB add-on).
